Planning the cluster configuration

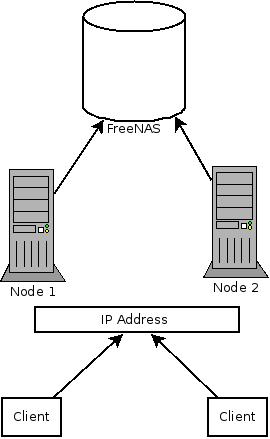

This post is part of a series that will deal with setting up a MySQL shared storage cluster using VirtualBox & FreeNAS. In this post we specify some brief details of the cluster configuration. Please note this post will be updated in the near future.



[table param1=”param-value1” param2=”param-value2”]
Component,Host Name, Public IP, Private IP,SAN IP
FreeNAS Storage, freenas.domain.co.uk, 192.168.1.103, NA,192.168.3.100/24
Node 1, node1.domain.co.uk, 192.168.1.101/24, 192.168.2.1/24, 192.168.3.2/24
Node 2, node2.domain.co.uk, 192.168.1.102/24, 192.168.2.2/24, 192.168.3.3/24
Cluster, cluster.domain.co.uk, 192.168.1.110/24,NA,NA
[/table]
